CASTELATION®
Modern, multi-dimensional batten look - the fresh appeal of modern battens. Castelation® and Castelation® Screenclad, both in Western Red Cedar or Hemlock are partner products from Modinex Group. Both profiles complement contemporary design trends in commercial and residential buildings. Continuous channels and shadowlines achieve a multi-dimensional timber batten look that is efficient and reliable.
Step 1: Select Size
81x12mm
81x18mm
81x21mm
81x26mm
Step 2: Select Material

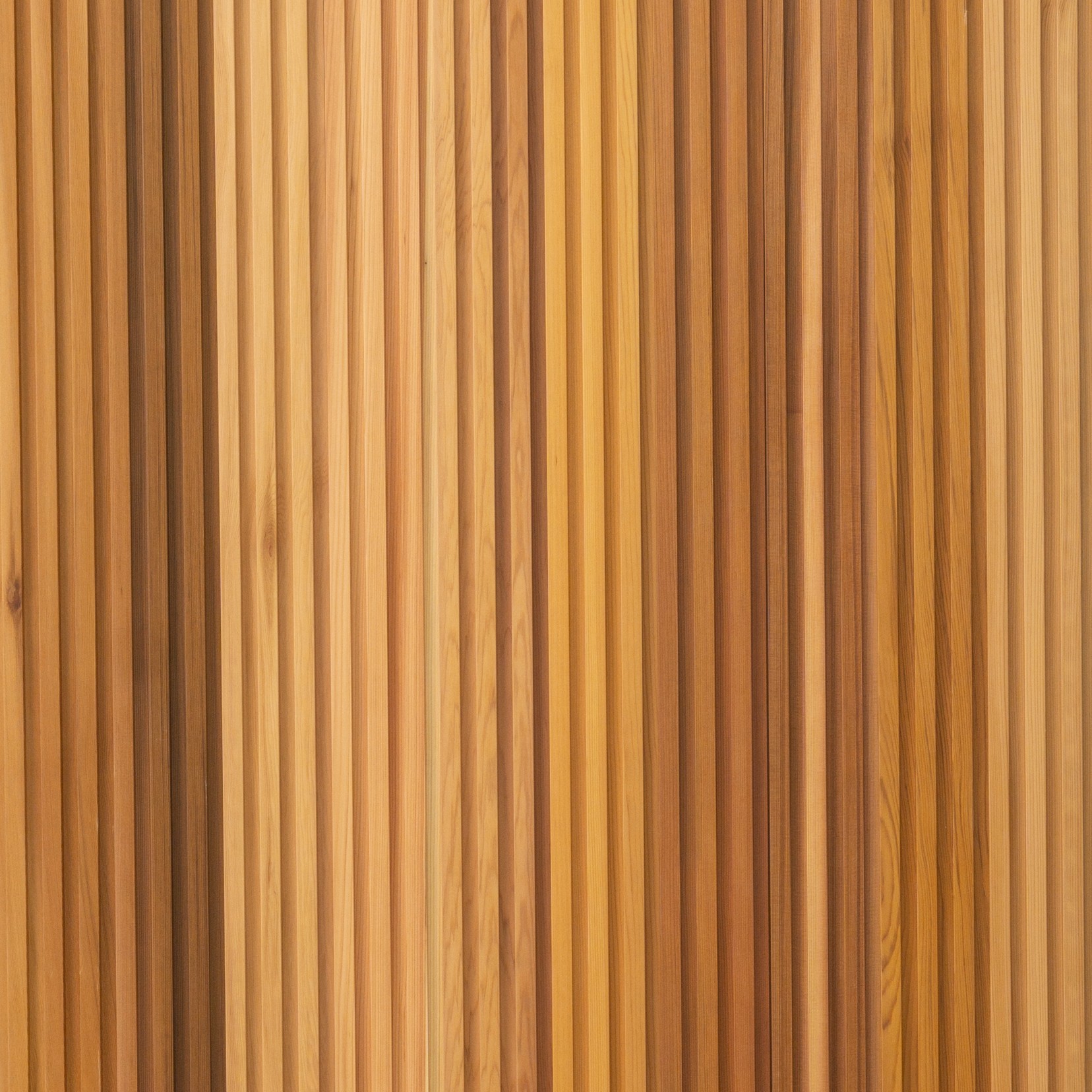

Western Red Cedar

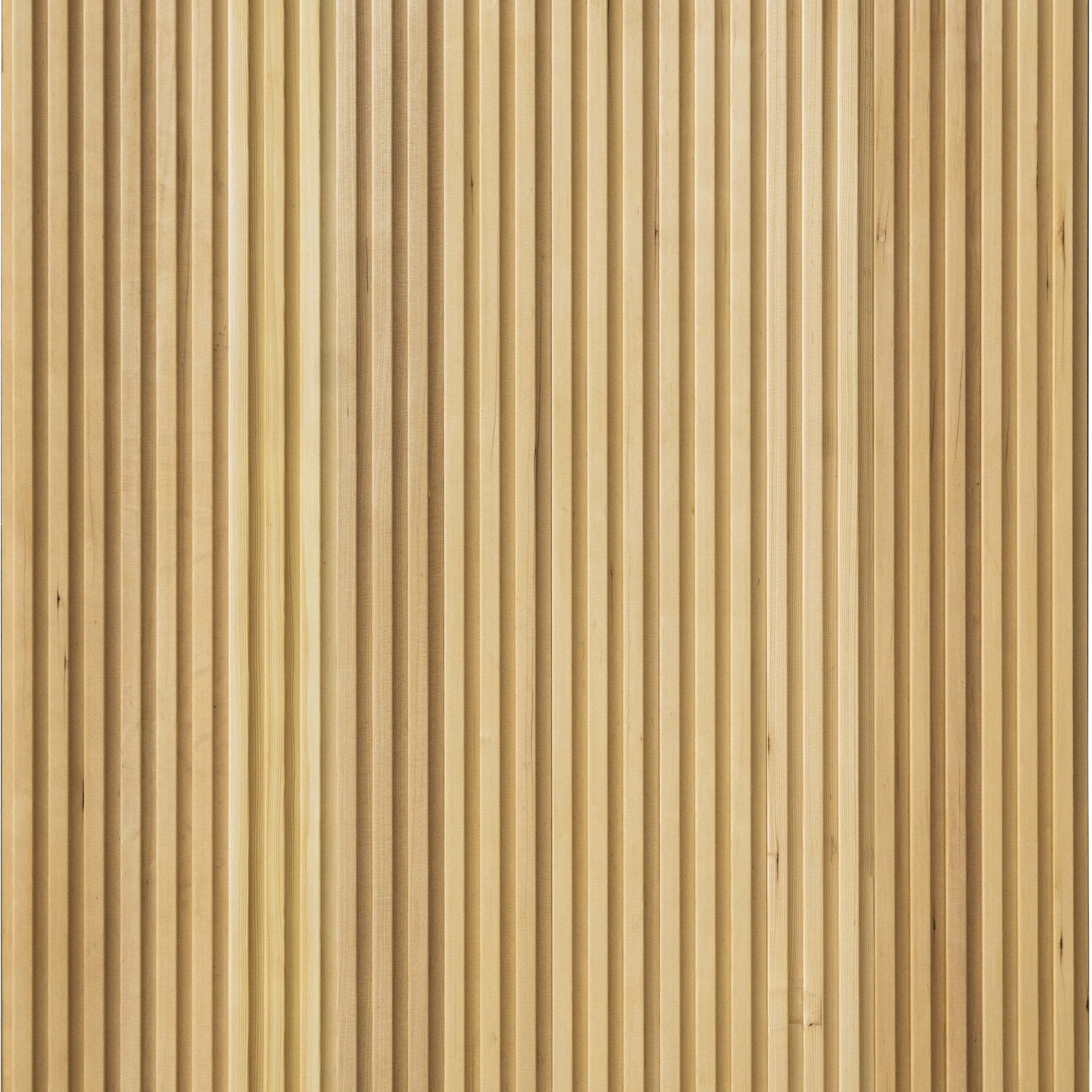

Hemlock
( Indoor & out of weather use only )
Blackbutt
Ironbark
Spotted Gum
Alaskan Cedar
Step 3: Select Colour
Raw
Clear Satin - Interior*
Oiled
Step 4: Start Building Your Design
Accessories
Dressed All Round
Mouldings & Componentry
How to Install – Exterior Timber Cladding
How to Install – Interior Timber Cladding
Features and Benefits
All Modinex Group products deliver a superior look and feel, and a low maintenance approach - the perfect solution.
Variety In Timber
Available in one standard width and three standard thicknesses
Interchangeable - Get Creative Series
This profile is part of the Modinex 'Get Creative Series' and is interchangeable to create your own custom design effect
Easy To Install
Concealed fixings for uninterrupted lines through aluminium extrusion. Consistent alignment and integrity and makes it easy and straightforward to install
Seamless Design
Specially designed interlocking tongue allows for secret fixing while single piece ‘batten’ look means installation is efficient and uncomplicated

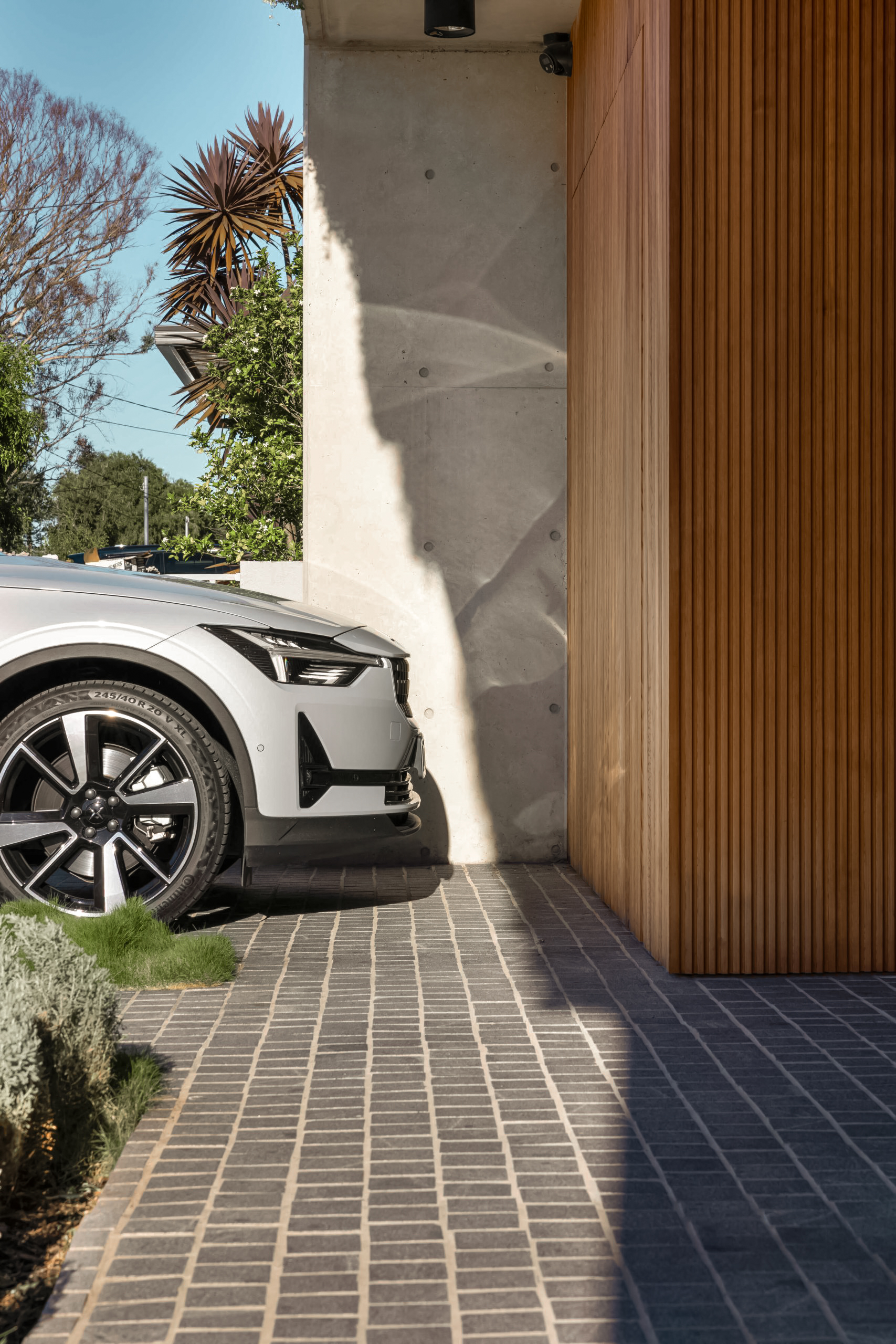

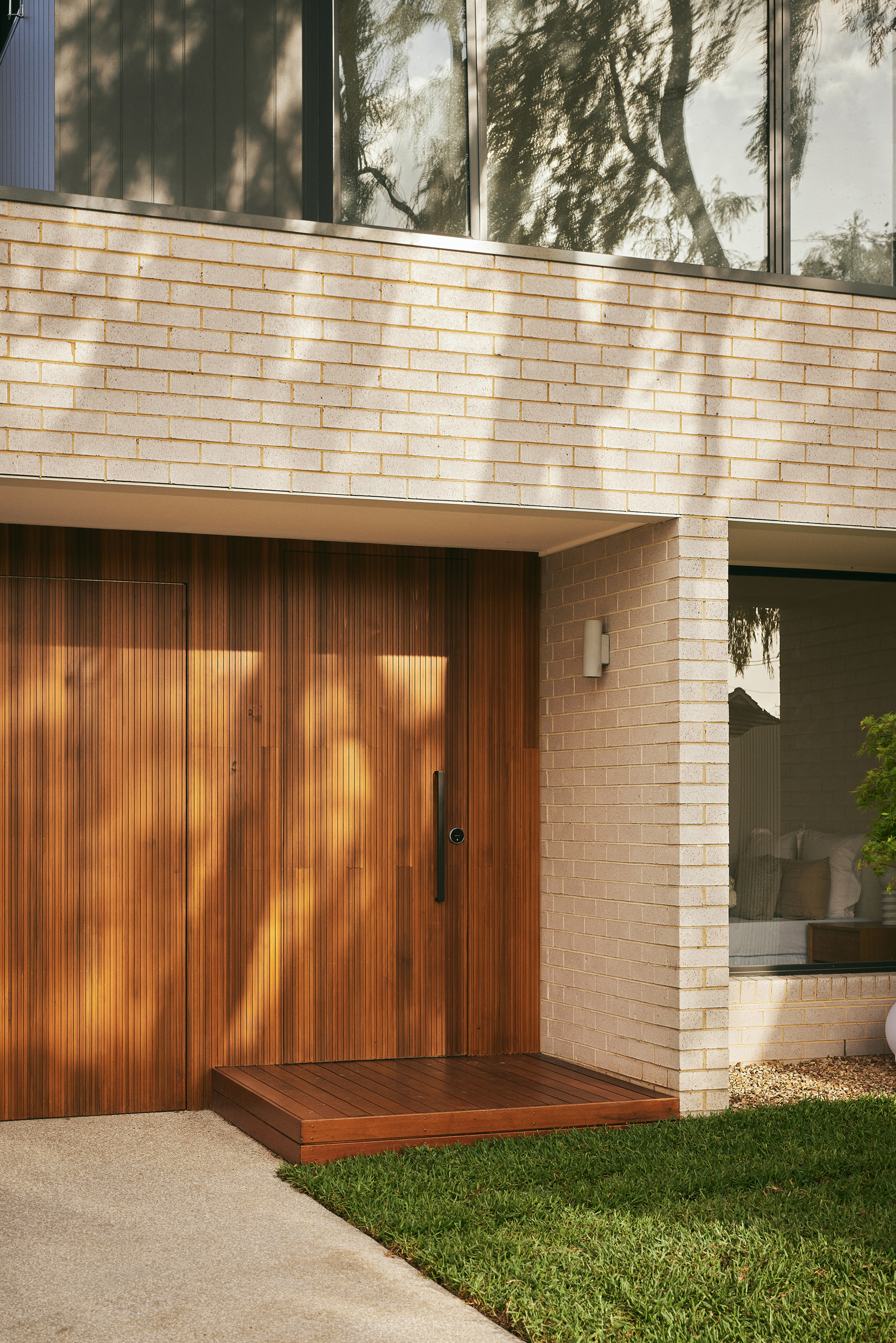

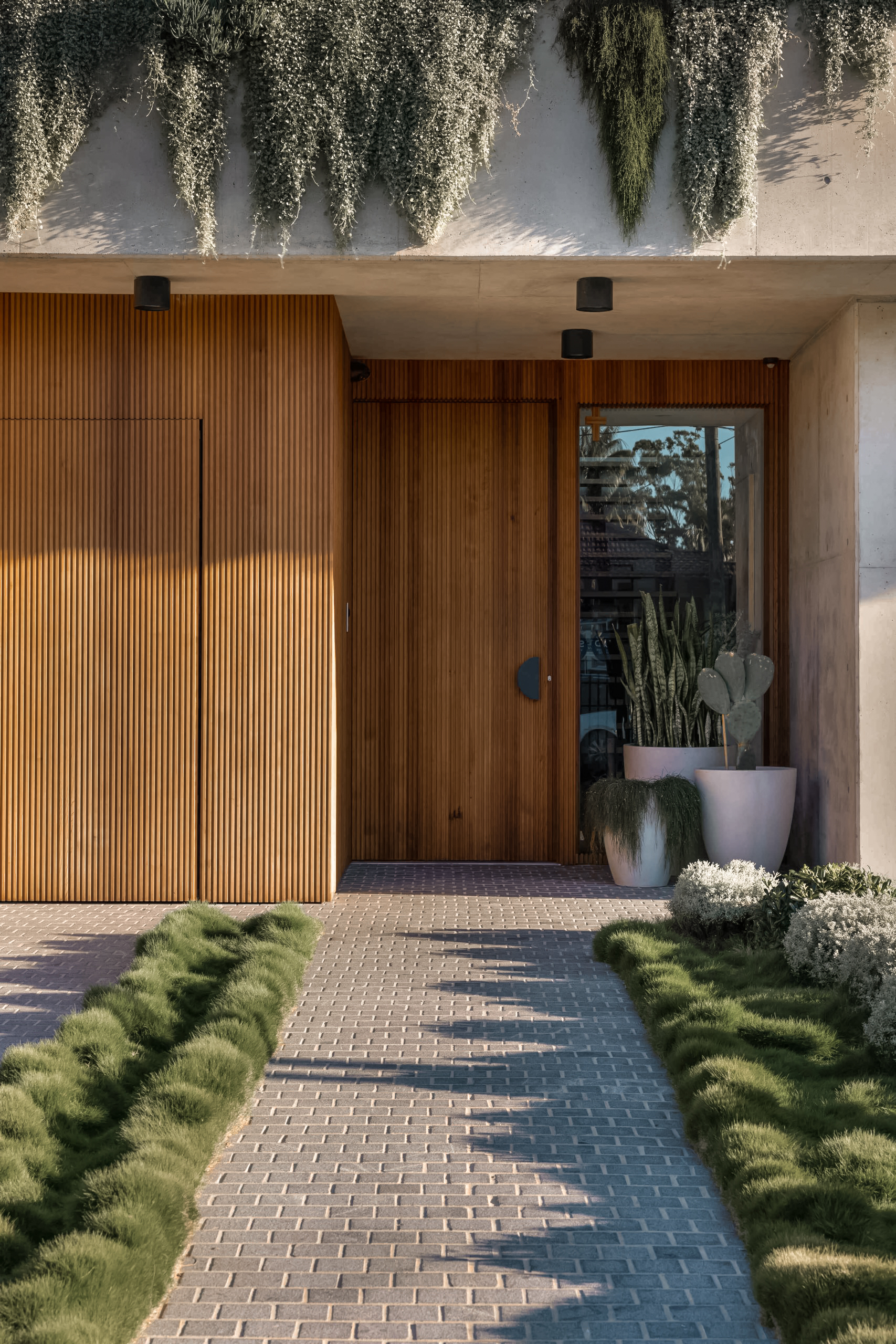

High Durability For Exterior Applications
Western Red Cedar is very durable therefore a great product to use in exterior applications, however we recommend using a Cutek penetrating oil coating when installation in direct weather applications
Pre-finish Satin Coatings Available
If coated in a Satin Coating, product is only suitable for use on internal and out-of-weather applications
Sustainable Timber
Sustainably-harvested timber PEFC™ Certified
Size & Specifications
| Profile Code | Cover | Thickness (mm) | Profile Height(mm) | Profile Length (mm) | Profile Width(mm) |
|---|---|---|---|---|---|
| PR-CTE-WRC-81X12 | 81mm | 12mm | Max Span 600mm | 900mm to 6000mm | 90mm |

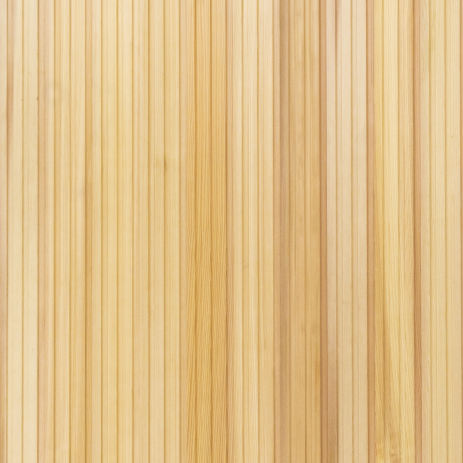

| PR-CTE-WRC-81X18 | 81mm | 18mm | Max Span 600mm | 900mm to 6000mm | 90mm |
| PR-CTE-WRC-81X26 | 81mm | 26mm | Max Span 600mm | 900mm to 6000mm | 90mm |
| PR-CTE-WRC-81X26-CS | 81mm | 26mm | Max Span 600mm | 900mm to 6000mm | 90mm |
| PR-CTE-HEM-81X26 | 81mm | 26mm | Max Span 600mm | 900mm to 6000mm | 90mm |
