CHANNEL CLADDING
CHANNEL CLADDING
Creating strongly-defined shadow lines, Channel provides an immaculate design feature for discerning tastes. This minimalistic profile is ideal for cladding the exterior of architecturally-designed buildings. Square, flat faces and deep, narrow channels produce an effect that’s simply stunning. Create dynamic shadow lines in perfect alignment with ease.
Step 1: Select Size
86x12mm
133x12mm
70x18mm
120x18mm
170x18mm
71x26mm
120x26mm
115x26mm
115x38mm
Step 2: Select Material
Western Red Cedar
Hemlock
( Indoor & out of weather use only )

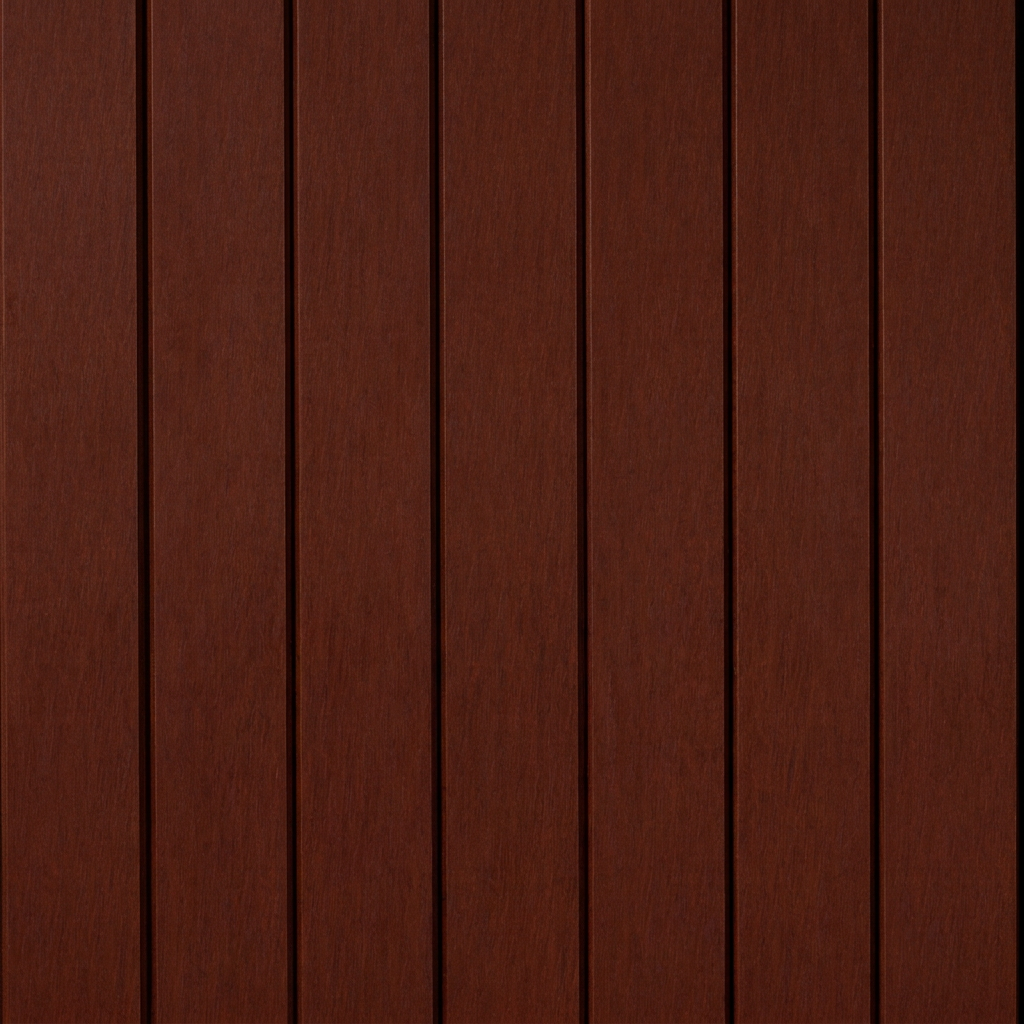

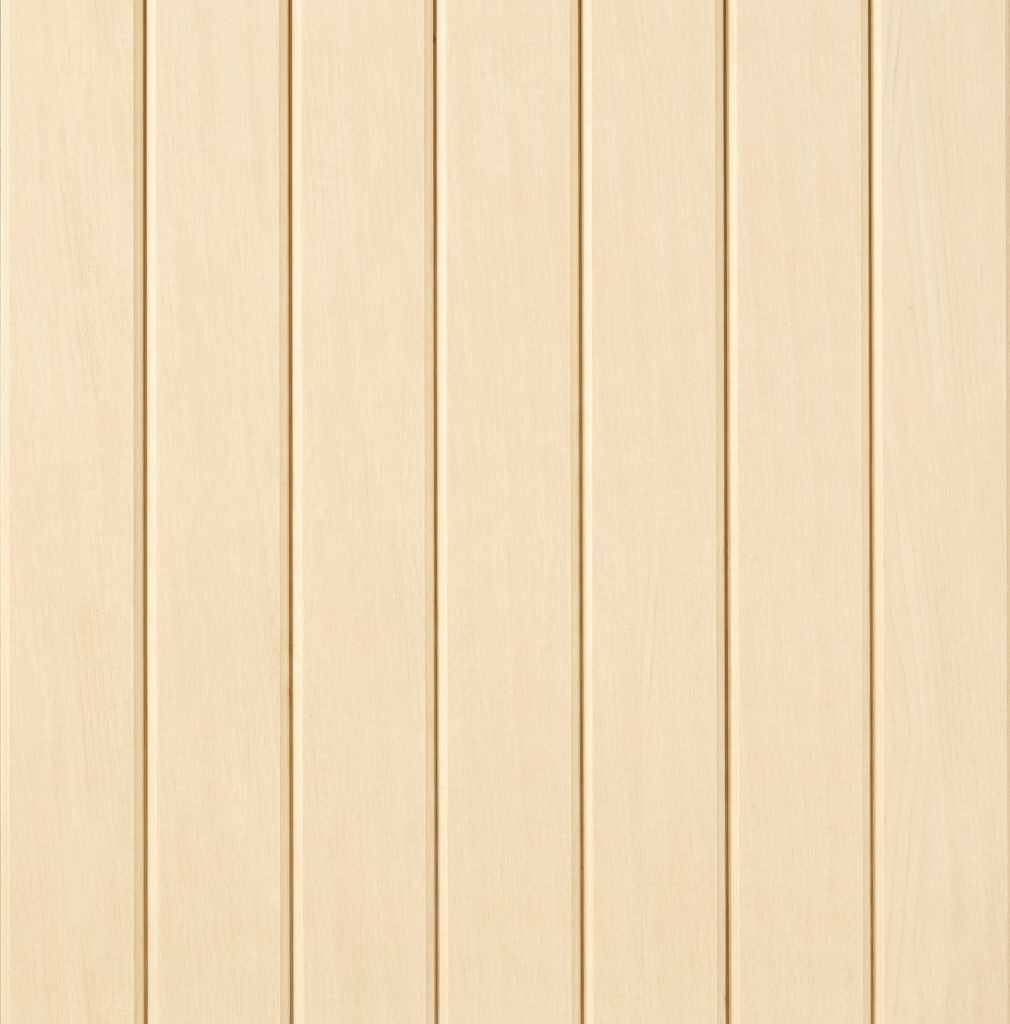

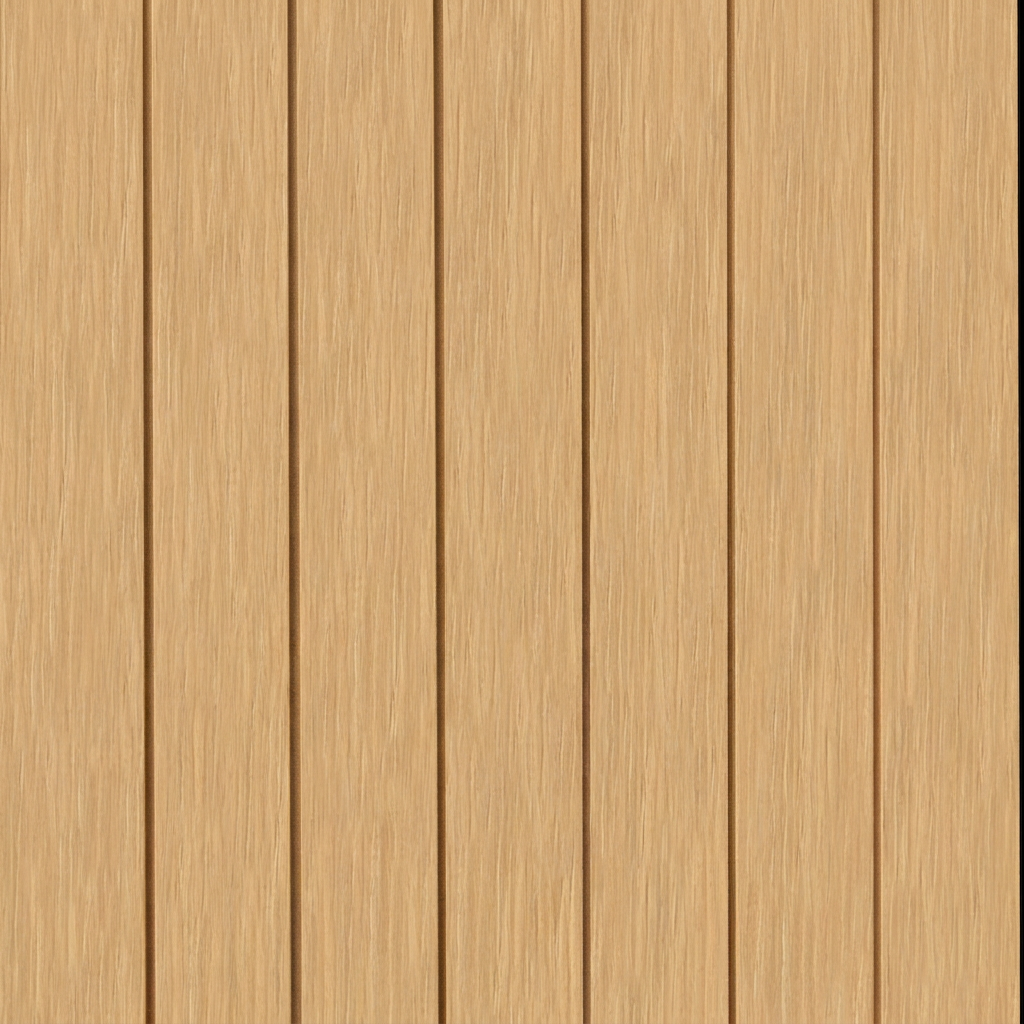

Step 3: Select Colour
Western Red Cedar
Hemlock
Step 4: Start Building Your Design
How to Install – Exterior Timber Cladding
How to Install – Interior Timber Cladding
Features and Benefits
All Modinex Group products deliver a superior look and feel, and a low maintenance approach - the perfect solution.
Sustainable Timber
Sustainably-harvested timber PEFC™ Certified
Seamless Finish
Tongue and groove profile can be secret nailed
Availability of Samples
Samples of all sizes and profiles are available prior to purchase
Ideal for large areas
Interchange options offer unlimited combinations – ideal for large areas
Diverse Looks
Can be stained for various colour effects while profiles can be combined randomly or evenly
Interchangeable - Get Creative Series
This profile is part of the Modinex 'Get Creative Series' and is interchangeable to create your own custom design effect
Downloads & Compliance
Size & Specifications
| Profile Code | Cover | Thickness (mm) | Profile Height(mm) | Profile Length (mm) | Profile Width(mm) |
|---|---|---|---|---|---|
| PR-CLS5S-WRC-86X12 | 86mm | 12mm | Max Span 600mm | 900mm to 6000mm | 96mm |
| PR-CLS5S-HEM-86X12 | 86mm | 12mm | Max Span 600mm | 900mm to 6000mm | 96mm |
| PR-CLS5S-WRC-133X12 | 133mm | 12mm | Max Span 600mm | 900mm to 6000mm | 143mm |
| PR-CLS5S-HEM-133X12 | 133mm | 12mm | Max Span 600mm | 900mm to 6000mm | 143mm |
| PR-CLS5E-WRC-70X18 | 70mm | 18mm | Max Span 600mm | 900mm to 6000mm | 86mm |
| PR-CLS5E-WRC-120X18 | 120mm | 18mm | Max Span 600mm | 900mm to 6000mm | 136mm |
| PR-CLS5E-WRC-170X18 | 170mm | 18mm | Max Span 600mm | 900mm to 6000mm | 186mm |
| PR-CLSS5C-WRC-71X26 | 71mm | 26mm | Max Span 600mm | 900mm to 6000mm | 90mm |
| PR-CLSS5C-WRC-120X26 | 120mm | 26mm | Max Span 600mm | 900mm to 6000mm | 140mm |
| PR-CLCG19C-WRC-115X26 | 115mm | 26mm | Max Span 600mm | 900mm to 6000mm | 115mm |
| PR-CLCG19B-WRC-115X38 | 115mm | 38mm | Max Span 600mm | 900mm to 6000mm | 115mm |
