Castelation and Screenclad Twotone

Make a luxurious statement - this classy timber paneling innovation is guaranteed to turn heads. Available in a range of stunning and stylish pre-finished colours, Castelation® Screenclad TwoTone offers style, colour, texture and dimension all in one. This product is for internal use only.
  • — Pre-finished
  • — Sustainable timber
  • — Easy to install
  • — Group 3 fire rated

Species

— Softwood

Western Red Cedar
×
Western Red Cedar - Select Tight Knot
×
Hemlock
×
Thermally Modified Hemlock
×
Alaskan Cedar
×
Accoya
×

Colours

Mocha
Sago
Double Black
Double White

Design & Performance

Sustainable timber — Available in a range of sustainably certified timber species
Certification — PEFC and FSC certified species are available
Fire rating — All Modinex timber species can achieve Group 3 for internal applications (Group 1 when treated with Fireshield). Softwood species do not meet the material requirements for BAL ratings. To view specific species information, visit our Species page.
Easy to install — Concealed fixings for a refined design for ease of installation
Seamless design — Specially designed interlocking tongue allows for secret fixing
Design — Available in random or set length option
Pre-finished coatings available — Available in a range of standard colours
Application — Suitable for internal and out of weather applications only

Technical Downloads & Compliance

Revit & CAD Content

Details (.dwg)

Castelation 81x12mm .dwg
Castelation 81x18mm .dwg
Castelation 81x21mm .dwg
Castelation 81x26mm .dwg
Screenclad 81×12.dwg
Screenclad 81×18.dwg
Screenclad 81×21.dwg
Screenclad 81×26.dwg

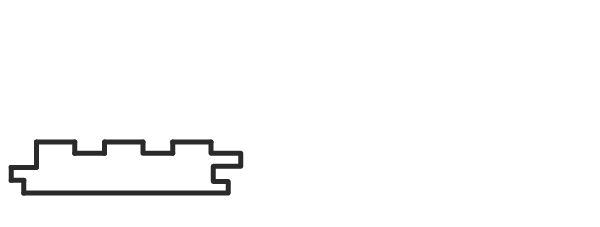

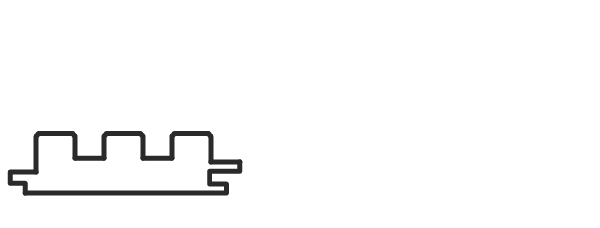

Profile Cross Sections

×
Castelation 81mmx12mm
×
Castelation 81mmx18mm
×
Castelation 81mmx21mm
×
Castelation 81mmx26mm
×
Screenclad 81mmx12mm
×
Screenclad 81mmx18mm
×
Screenclad 81mmx21mm
×
Screenclad 81mmx26mm

Sustainability

Our strong partnership with forest owners in Australia, Europe & Canada for over 40 years, ensures a consistent supply of high-quality PEFC™ and FSC™ certified timber. Modinex invests in the replantation of our native forest.

We are committed to manufacturing with zero waste from harvesting through to your completed product. During the harvesting process, all by-products such as sawdust, chips, and bark are sent to pulp and paper manufacturers, to create other sustainable sources products. When moulding profiles, and any by-product is then processed into a fine dust which is then used in organic soils.

With our commitment to achieving Net Zero emission by 2050, we offer a range of cladding and lining solution with an embodied energy as low at 0.5MJ/kg. Our collection of Canadian soft wood species has the lowest embodied energy. Due to their cellular structure, they can be seasoned and stabilised using natural resources without the use of a kiln.

All coatings used at Modinex are ultra-low VOC, taking our responsibility to reduce the concentration of contaminants in the ozone layer.

Natural Timber Characteristics

Modinex products are manufactured from genuine solid timber and should be understood as a natural material, not a synthetic or manufactured finish.

Natural variation in colour, grain, texture, knots, figure, coating absorption and board-to-board appearance is inherent to timber and forms part of its character. These variations are expected and do not constitute a defect where they fall within the nominated grade, product specification and applicable Australian Standards.

As timber is a hygroscopic material, it will naturally respond to environmental conditions. Minor movement, checking, weathering and visual changes may occur over time and should be expected as part of normal in-service performance.

All Modinex timber products are supplied in accordance with the nominated species, profile, grade and relevant Australian Standards unless otherwise agreed in writing.

Learn more about timber grading, natural variation and performance https://modinex.com.au/species.

How to install

Testimonials

Ben Webber

Webber Build

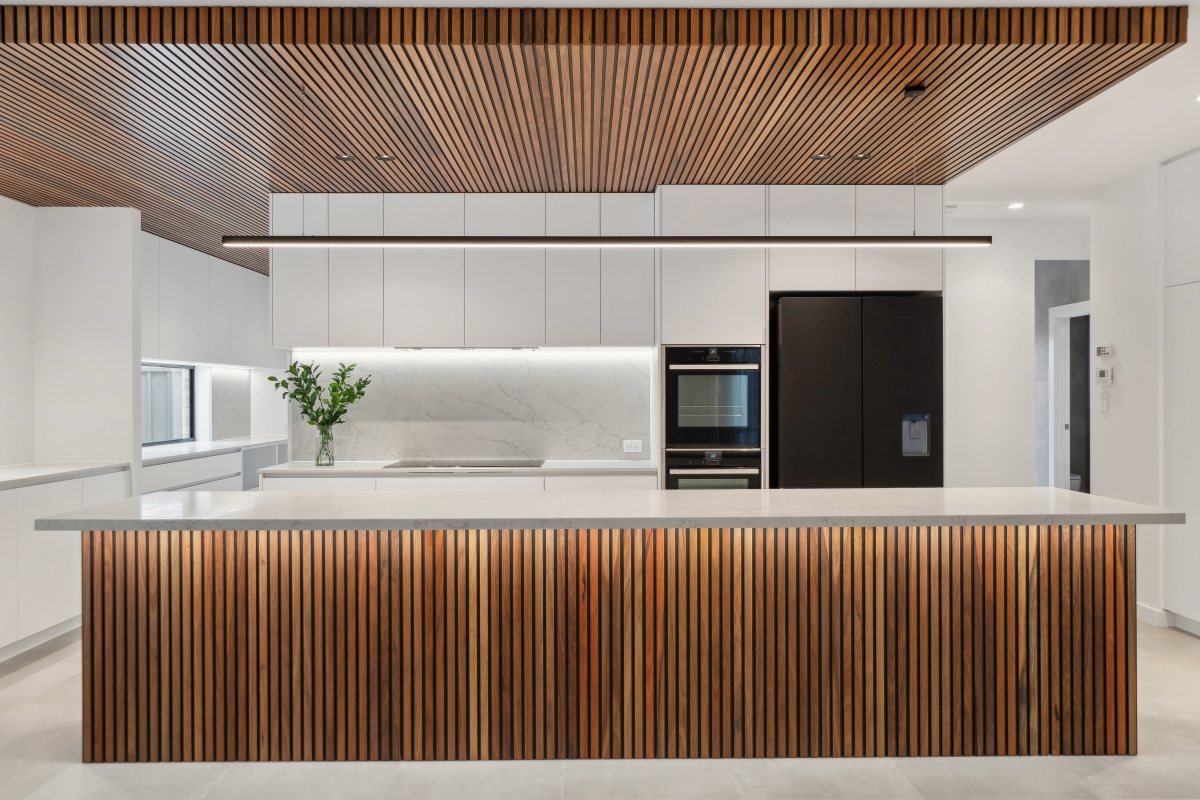

I was referred to Modinex by an architect we partner with. We collaborated wtih Modinex as their system was easy to use and install, with all the boards being of great quality and straightness. The team was easy to deal with when ordering and storing the product at their warehouse until we needed it. Our clients love the Mocha two tone product and every potential client loves it when I showcase my work.
