AUSTRATUS GRID – TIMBER

Products / Timber cladding & lining / Austratus-grid-timber

AUSTRATUS GRID – TIMBER

A suspended ceiling system with visual impact, durability, and architectural flexibility.

  • Suspended system
  • PEFC certified
  • Group 3 fire rating
  • Sustainable timber
Email me specs Request a sample Request a quote

Receive Technical Specification Information






    Request a sample





      Sample availability may vary. If your exact finish or profile is unavailable, we'll provide alternative samples that represent your requested specifications.

      Request a quote


        Revit Files

          Receive Technical Specification Information






            Request a sample





              Sample availability may vary. If your exact finish or profile is unavailable, we'll provide alternative samples that represent your requested specifications.

              Request a quote


                Revit Files

                  Receive Technical Specification Information






                    Request a sample





                      Sample availability may vary. If your exact finish or profile is unavailable, we'll provide alternative samples that represent your requested specifications.

                      Request a quote


                        Revit Files

                          Receive Technical Specification Information






                            Request a sample





                              Sample availability may vary. If your exact finish or profile is unavailable, we'll provide alternative samples that represent your requested specifications.

                              Request a quote


                                Revit Files

                                  Austratus Grid - Timber ceiling in Hemlock, Touch Wood
                                  Profiles
                                  Sizes and species availability
                                  All species
                                  Western Red Cedar
                                  Hemlock
                                  Blackbutt
                                  Spotted Gum

                                  Fin 30mmx30mm

                                  3 species

                                  Fin 30mmx40mm

                                  4 species

                                  Fin 30mmx60mm

                                  4 species

                                  Fin 30mmx90mm

                                  4 species

                                  Fin 40mmx40mm

                                  4 species

                                  Fin 40mmx60mm

                                  4 species

                                  Fin 40mmx90mm

                                  4 species

                                  Fin 40mmx140mm

                                  4 species

                                  Fin 40mmx190mm

                                  4 species

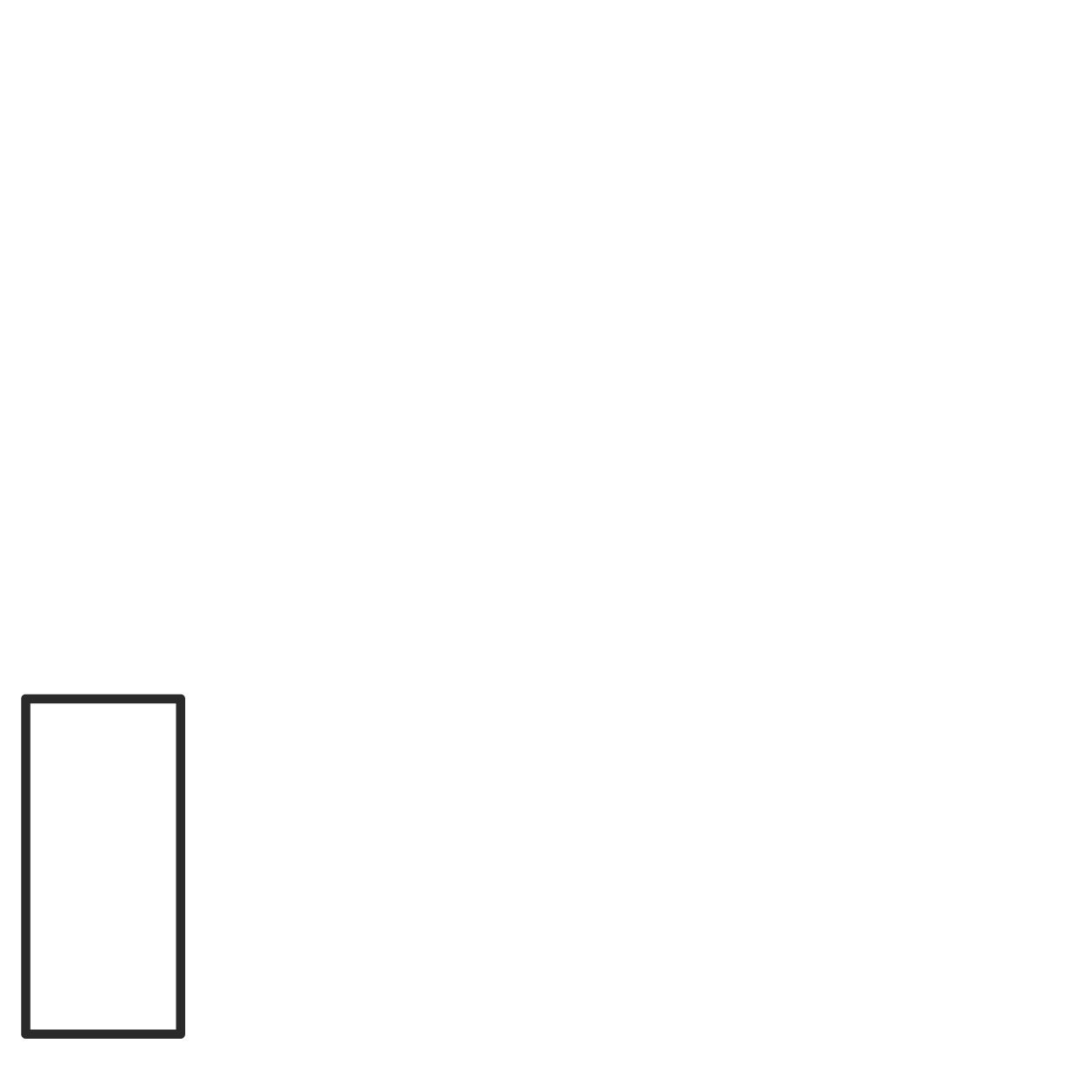

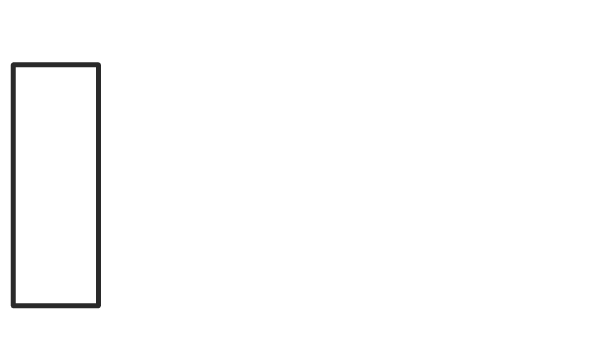

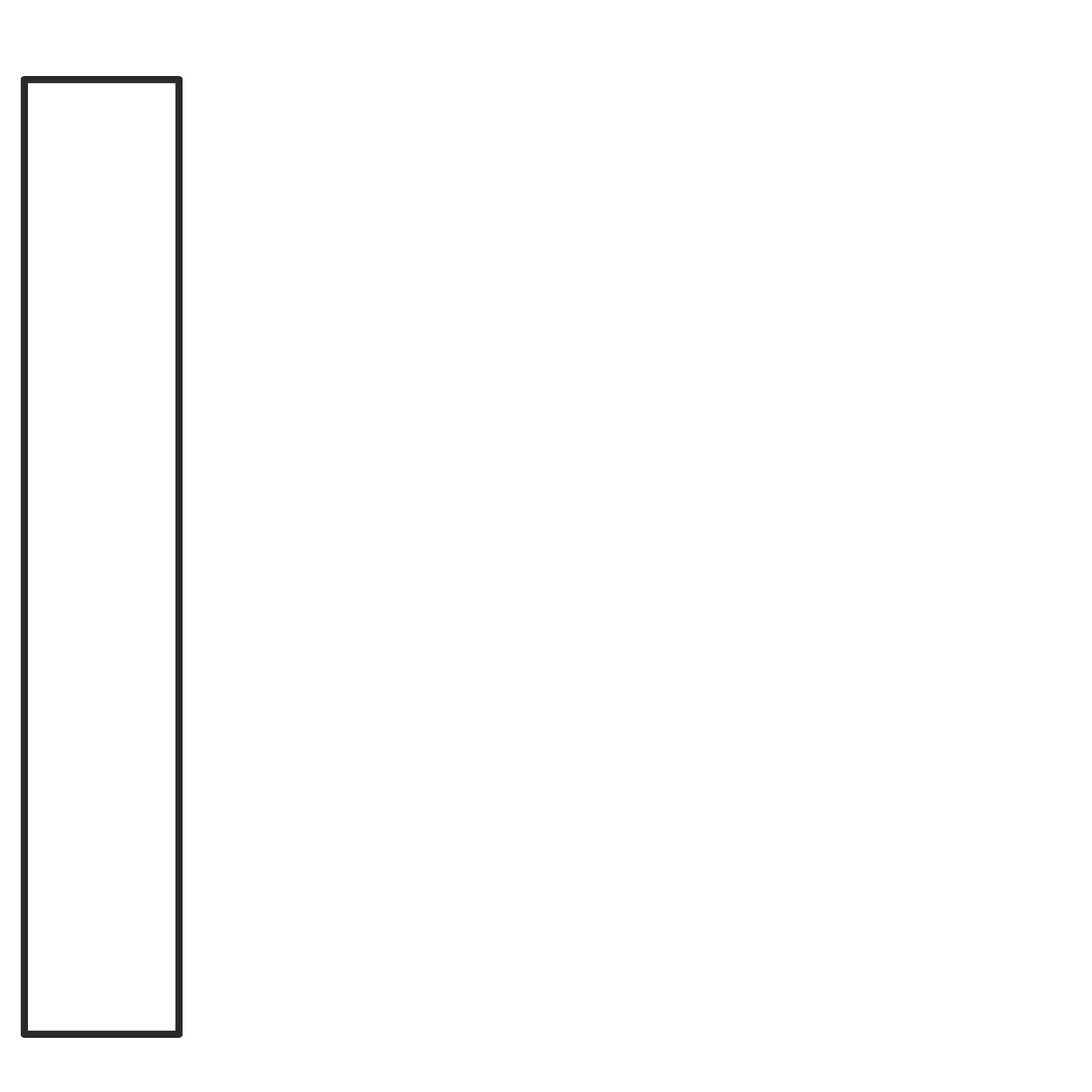

                                  Fascia 30mmx65mm

                                  4 species

                                  Fascia 30mmx85mm

                                  4 species

                                  Fascia 30mmx115mm

                                  4 species

                                  Fascia 30mmx165mm

                                  4 species

                                  Fascia 30mmx215mm

                                  4 species

                                  Fascia 40mmx65mm

                                  4 species

                                  Fascia 40mmx85mm

                                  4 species

                                  Fascia 40mmx115mm

                                  4 species

                                  Fascia 40mmx165mm

                                  4 species

                                  Fascia 40mmx215mm

                                  4 species
                                  Species

                                  The same profile is available across softwoods and Australian hardwoods.

                                  Western Red Cedar

                                  Softwood · exterior & interior

                                  ×
                                  Hemlock

                                  Softwood · exterior (out of weather) & interior

                                  ×
                                  Blackbutt

                                  Hardwood · exterior & interior

                                  ×
                                  Spotted Gum

                                  Hardwood · exterior & interior

                                  ×
                                  Timber is a natural material, so some variation in grain and colour is to be expected. Speak to our team to make sure your chosen species suits the project.
                                  Surface Finishes

                                  Dressed

                                  A smooth, planed face. The default for refined interiors and ceilings where the grain should sit quietly.

                                   All species
                                  Coatings

                                  We coat dressed boards with a penetrating oil system that protects timber from the inside, so it won't form a film that can flake or peel. An optional Colourtone is mixed into the oil to set the timber's tone and slow the natural greying that happens outdoors.

                                  Coatings apply to the dressed finish only. Other surface finishes are supplied uncoated.
                                  Cutek Clear oil
                                  Extreme CD50 Clear
                                  Cutek Colourtones (mixed into the clear oil)
                                  AutumnTone
                                  Ebony
                                  Burnt Red
                                  Chestnut
                                  GoldTone
                                  GreyMist
                                  BronzeTone
                                  Rustic Gold
                                  Sela Brown
                                  Walnut
                                  Graphite
                                  Patina
                                  Dark Walnut
                                  Black Ash
                                  Final colour shifts with species, number of coats and time outdoors, so request a sample for an accurate match. Colour swatches are indicative only.
                                  Performance & Compliance

                                  Austratus Grid – Timber is supplied with the evidence specifiers ask for: species-specific
                                  data sheets, bushfire (BAL) and fire-group documentation, and durability ratings. Most ratings vary by species, so figures are confirmed against your selection rather than quoted as a blanket number.

                                  Vertical ceiling solution
                                  Quick and easy installation
                                  Group 3*
                                  Fire group (Group 1 with FireShield)
                                  Class 4
                                  Durability
                                  * Species and coating dependent.
                                  View compliance documents
                                  Applications
                                  • Residential ceiling
                                  • Commercial fit-outs and hospitality
                                  Sustainability

                                  Timber is only a low-carbon choice if it is sourced and used well. Our boards come from PEFC chain-of-custody certified supply, and we make products that are built to last: durable species and quality coatings that keep boards in service for decades rather than years.

                                  Offcuts and short lengths are re-used where a job allows, and sawdust and shavings are recovered rather than landfilled. At end of life, solid timber can be re-milled, repurposed or composted.

                                  PEFC
                                  Chain-of-custody certified supply
                                  Low VOC
                                  Low-VOC coating options available
                                  Low Waste
                                  Offcuts re-used, sawdust recovered
                                  Built to last
                                  Durable species and coatings

                                  Specification

                                  Specify Austratus Grid – Timber

                                  The schedule template below writes most of the spec for you. If you would rather talk it through, our architectural consultants can help. Contact us to book a meeting.

                                  Specification tool

                                  Schedule template

                                  An editable spec builder for your materials or finishes schedule. Choose a profile, species, finish and application, and the template auto-fills copy-ready values you can paste straight into your documentation. Built and maintained by Modinex, covering the standard Austratus Grid – Timber range.

                                  Download Austratus Grid – Timber Schedule Template.xlsx
                                  • —   Manufacturer and product
                                  • —   Species, timber type and appearance
                                  • —   Profile size and surface finish
                                  • —   Fire group and BAL sustainability
                                  • —   Recommended coating and certification
                                  • —   Matching care and maintenance guide
                                  Resources
                                  Drawings, models and data sheets for specification and detailing.

                                  Samples, specs & pricing

                                  Request samples, specs or pricing

                                  Tell us the project, profile and species you're working with, and our team will arrange samples, specification data and pricing.
