Alu Selekta Channel

Modinex’s Alu Selekta Channel aluminium cladding is an innovative design solution that design to withstand robust conditions. Available in our MX-Dura timber grain finish, plain powder coat or an anodized finish, Alu Selekta Channel can be used in a variety of design and construction applications. This non-combustible cladding is suitable for commercial and residential applications. Alu Selekta Channel is AS1530.1, CodeMark, Sea Salt and Spray, and hurricane certified.
  • — Low maintenance
  • — AS1530.1 non-combustible
  • — Sea salt and spray tested
  • — Large range of finishes
  • — BAL29 fire rated
  • — Manufactured in Australia

Finishes

— Timber Grain

MX Dura
Everest
Light Oak
Tasmanian Oak
Blackbutt
Cedar
American Oak
White Oak
Spotted Gum
Dark Cedar
Brushbox
Meranti
English Oak
Brown Oak
Dark Smoked Oak
Silvertop Ash
White Birch
Silver Oak
African Ebony
Midnight Carbon
× Modal Image
Interpon and Dulux solid powder coat colours are available. Contact our team for more information.
× Modal Image

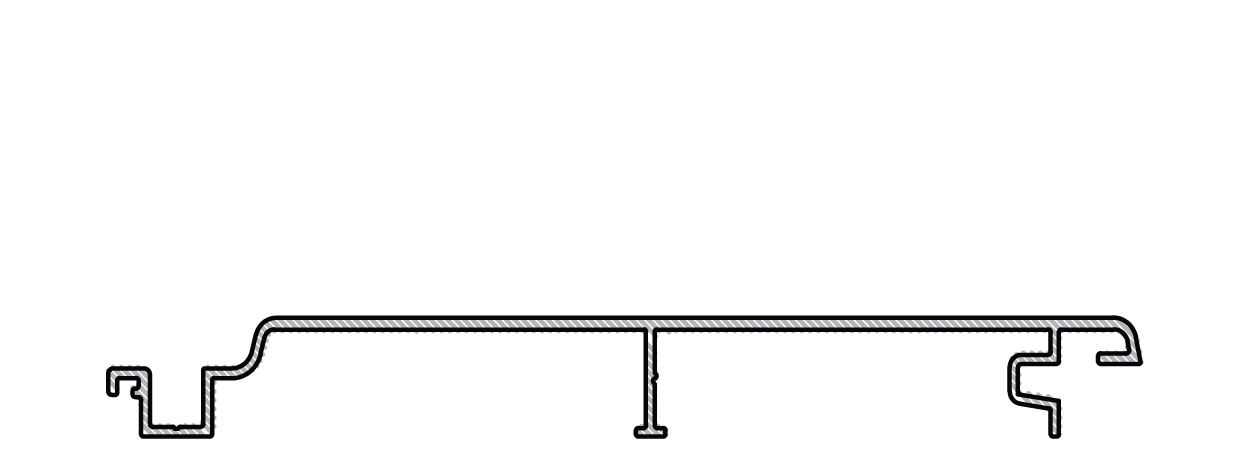

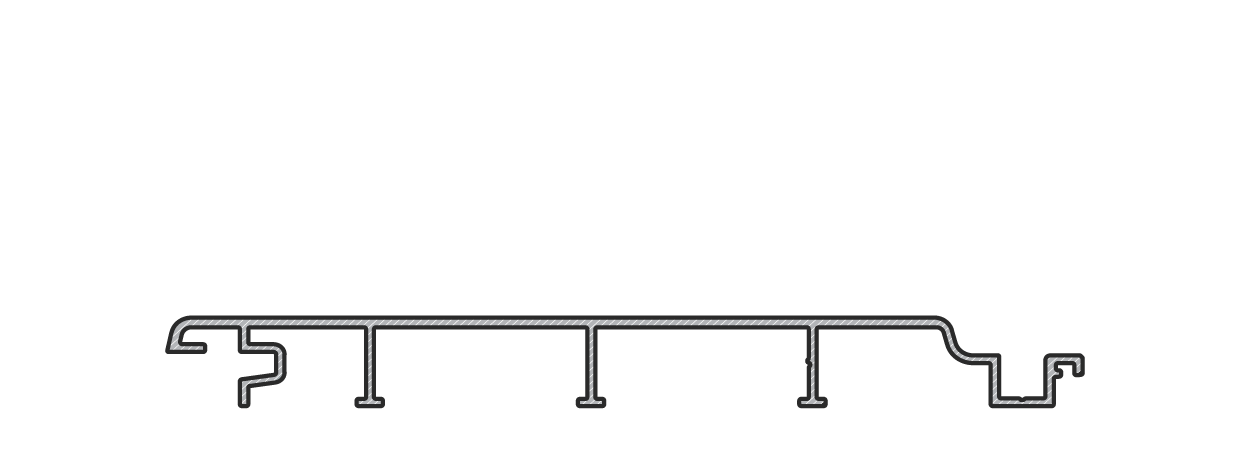

How it looks

×
75mmx18mm
×
155mmx18mm

Accessories

×
2 pc Connection Cover Part A
×
2 pc Connection Cover Part B
×
2 pc Edge Cover Part A
40mm
Available in branded colours
5.4m lengths
×
2 pc Edge Cover Part B
25mm
Satin Black
5.4m lengths
×

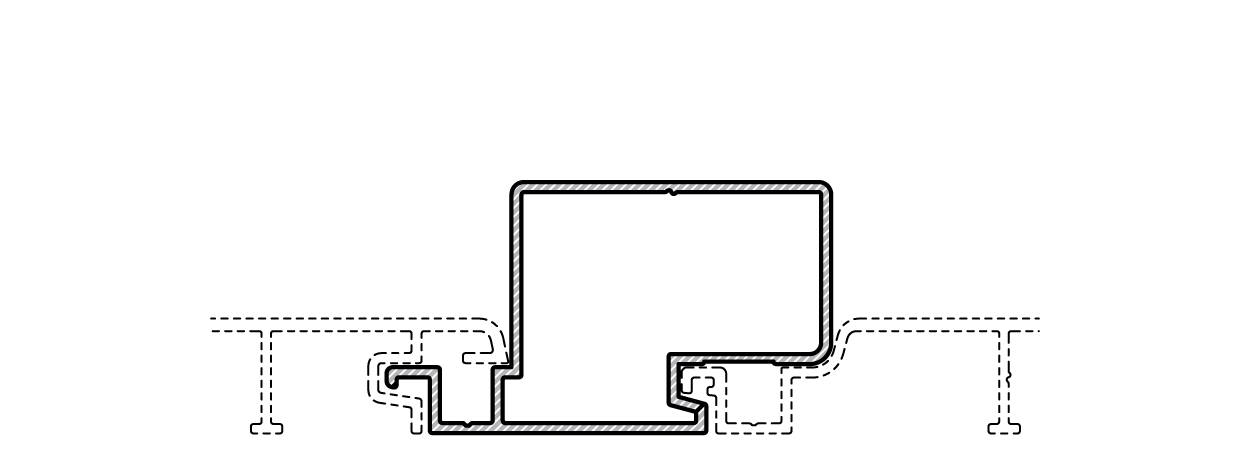

Adjustable Corner Part A
×
Adjustable Corner Part B
Available in branded colours
5.4m lengths
×
Angle
20x20mm, 40x20mm
Available in branded colours
5.4m lengths
×
F Profile
Available in branded colours
5.4m lengths
×
Horizontal Starter Profile
Available in branded colours
5.4m lengths
×
Vertical Starter Profile
Available in branded colours
5.4m lengths
×
Y Profile
Available in branded colours
5.4m lengths
×
Z Profile
Available in branded colours
5.4m lengths
×
Galvanised Steel Screw
×
Stainless Steel Screw

Sustainability

100% Australian-manufactured profiles and coatings, Modinex now offers Green and SuperGreen aluminum. Green aluminum produces around 50% less CO2 emissions (8kg CO2e/kg AL), and SuperGreen produces 75% less CO2 emissions (4kg CO2e/kg AL).

Modinex is committed to Net Zero by 2050 and working actively on reducing Scope 1 and Scope 2 emissions.

Modinex’s aluminum profiles are ASI Certified with full Chain of Custody management. All aluminium profiles are 100% recyclable at the end of their life cycle.

Using responsible sources lower-carbon aluminum on your next project is the right choice for the environment.

Features and benefits

Compliance — CodeMark, cyclone, sea salt spray certified
Fire rating — AS1530.1 non-combustible
Durability — 25-year structural & 15-year fading warranty (if plain or timber grain powder coating finish is used)
Availability — Manufactured 100% in Australia with a short lead time
Easy to install — Concealed fixings for a refined design for ease of installation
Seamless design — Specially design interlocking tongue allows for secret fixing
Sustainability — Available in Green & Supergreen aluminium to reduce CO2 emission by 50-75%
Design — Available in a range of plain colour or timber grain finishes
Curved design — 70mm wide profile can be curved to a convex radius of 700mm and the 155mm wide profile to a convex radius of 1200mm

How to install

Receive Technical Specification Information






    Request a sample





      Sample availability may vary. If your exact finish or profile is unavailable, we'll provide alternative samples that represent your requested specifications.

      Request a quote


        Revit Files

          -->
