Alu Selekta Castelation Screenclad

Modinex's latest innovation - Alu Selekta Castelation Screenclad is made from highly durable aluminium with design features inspired from our Castelation series. This timber-look non- combustible cladding is eco-friendly, low maintenance and incredibly durable. It’s ideal for high rises and bushfire rated areas.
  • — Low maintenance
  • — AS1530.1 non-combustible
  • — Sea salt and spray tested
  • — Large range of finishes
  • — Manufactured in Australia

Finishes

— Timber Grain

MX Dura
Everest
Light Oak
Tasmanian Oak
Blackbutt
Cedar

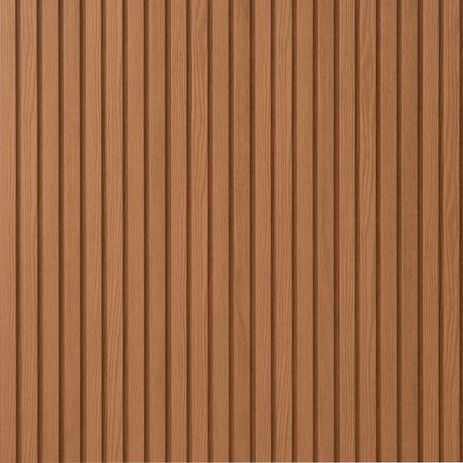

White Oak
Spotted Gum

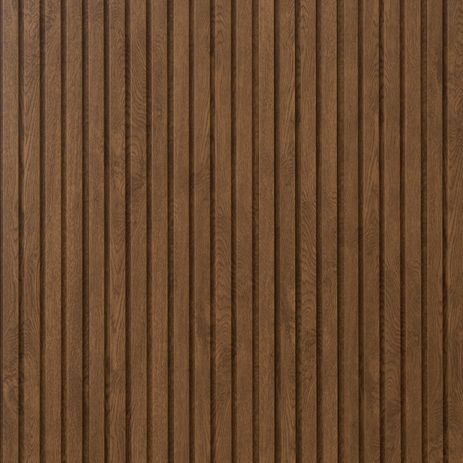

Dark Cedar
American Oak
Brushbox
Meranti
English Oak
Brown Oak
Dark Smoked Oak
Silvertop Ash

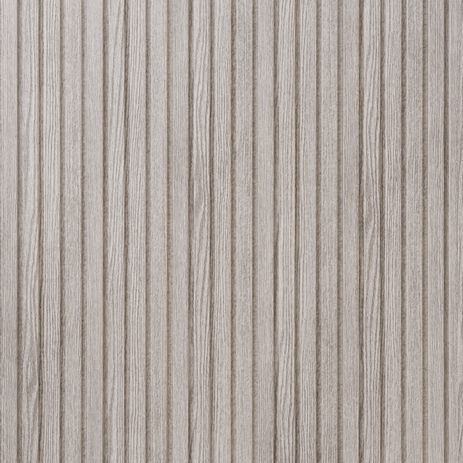

White Birch
Silver Oak
African Ebony
Midnight Carbon
× Modal Image

— Solid Powder Coat

Alpha
Basalt
Dune
Natural White
Shale Grey
Surfmist
Territory
White-alpha
Talc
Lunar Grey
Silver Grey
Timberland
Charcoal
Monument
Black
× Modal Image
Charisma
Surfmist
Dune
Shale Grey
Bluegum
Basalt
Monument
Black Ace
× Modal Image
Struttura
Natural White - Struttura
Surfmist - Struttura
Shale Grey - Struttura
Basalt - Struttura
Monument - Struttura
Black - Struttura
CorTen
× Modal Image
Mettalico
Aged Brass
New Copper
Pale Bronze
Gold Pearl
Fresh Gold
Sensational Champagne
Brilliance
Medium Bronze
Burnished Copper
Dark Bronze
Venerable Silver
× Modal Image

— Anodised

Matt
Portland Stone
Amber Gold
Jamaican Chocolate
Summer Maize
Sovereign Gold
Maroochy Sand
Prosecco
× Modal Image
Illustro
Bold as Brass
Medallion Bronze
Macchiato
Bronze Monument
Gold Odyssey
Blush
Copper Coin
× Modal Image
Bright
Diamond Light
Moonbeam
Smokey Quartz
Smooth Onyx
Burnished Gold
× Modal Image

How it looks

×

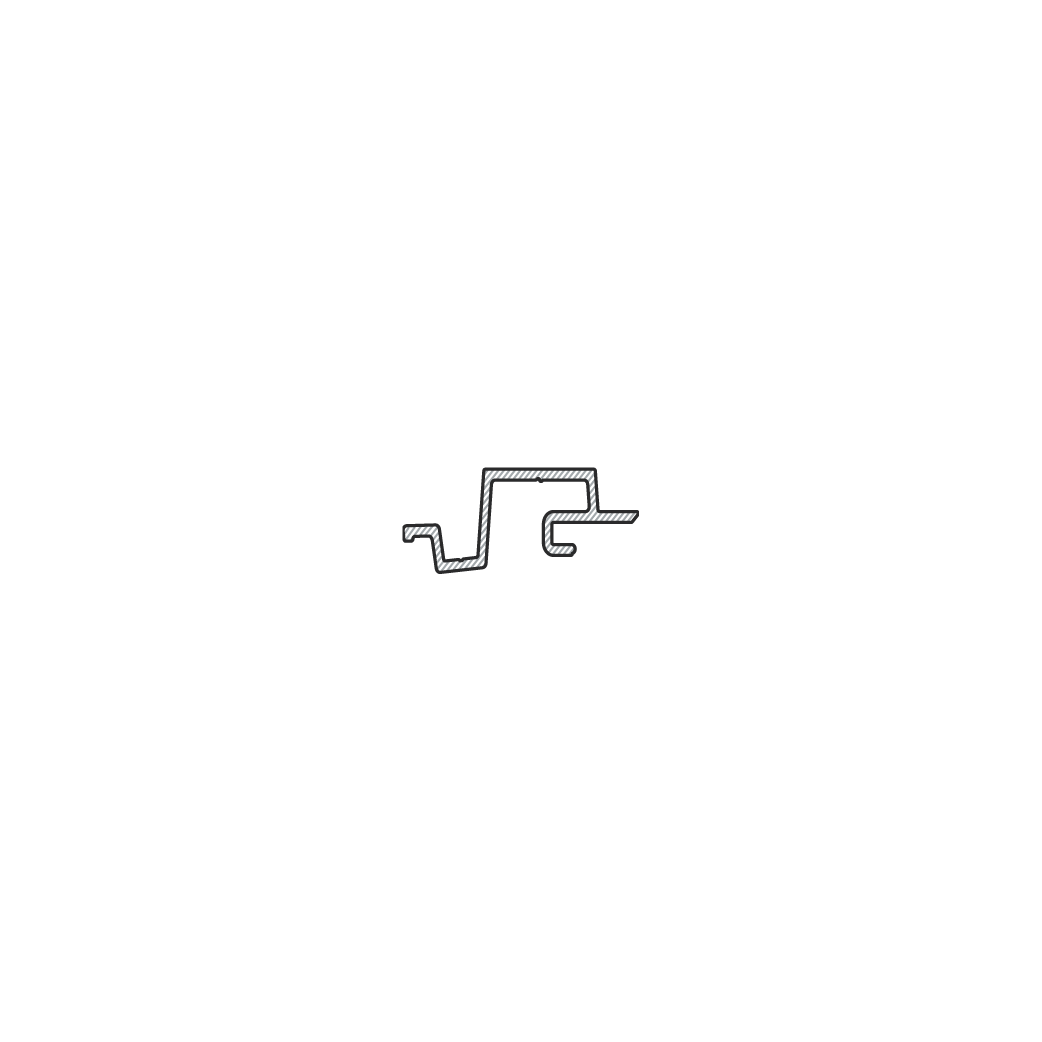

40mmx20mm
×

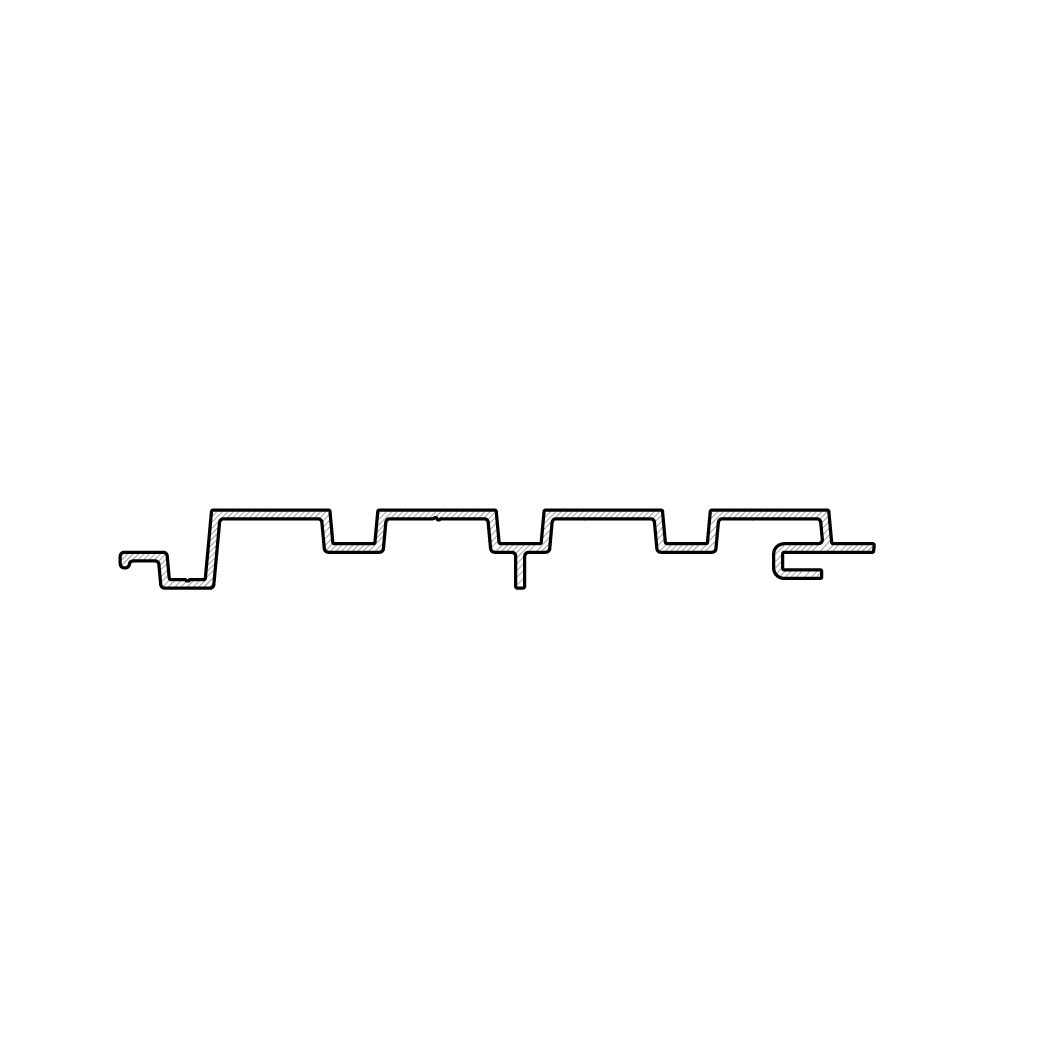

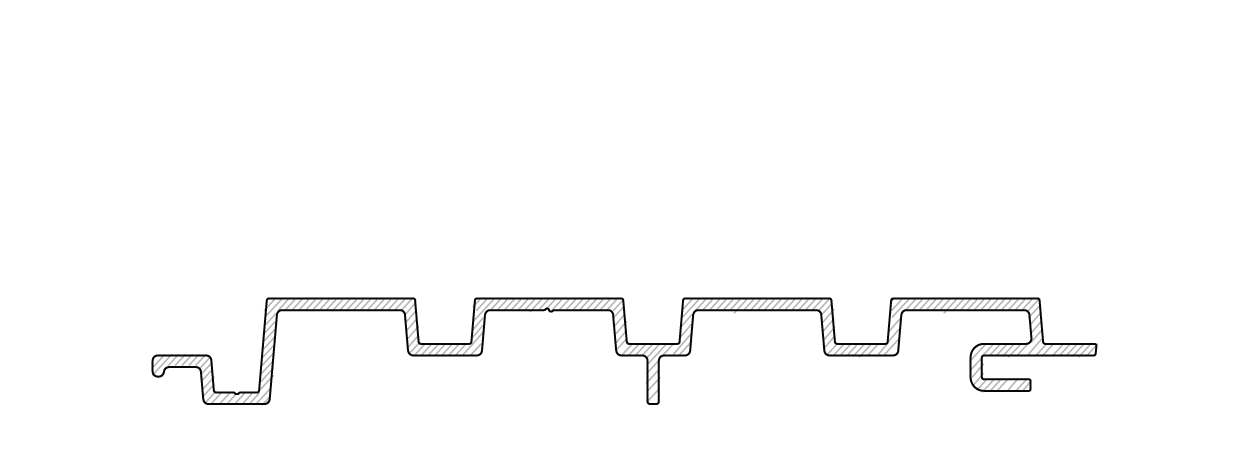

160mmx20mm

Accessories

×
2 pc Connection Cover Part A
Available in branded colours
5.4m lengths
×
2 pc Connection Cover Part B
Available in branded colours
5.4m lengths
×
2 pc Edge Cover Part A
40mm
Available in branded colours
5.4m lengths
×
2 pc Edge Cover Part B
25mm
Satin Black
5.4m lengths
×
Adjustable Corner Part A
×
Adjustable Corner Part B
Available in branded colours
5.4m lengths
×
Angle
20x20mm, 40x20mm
Available in branded colours
5.4m lengths
×
F Profile
Available in branded colours
5.4m lengths
×
Horizontal Starter Profile
Available in branded colours
5.4m lengths
×
Vertical Starter Profile
Available in branded colours
5.4m lengths
×
Y Profile
Available in branded colours
5.4m lengths
×

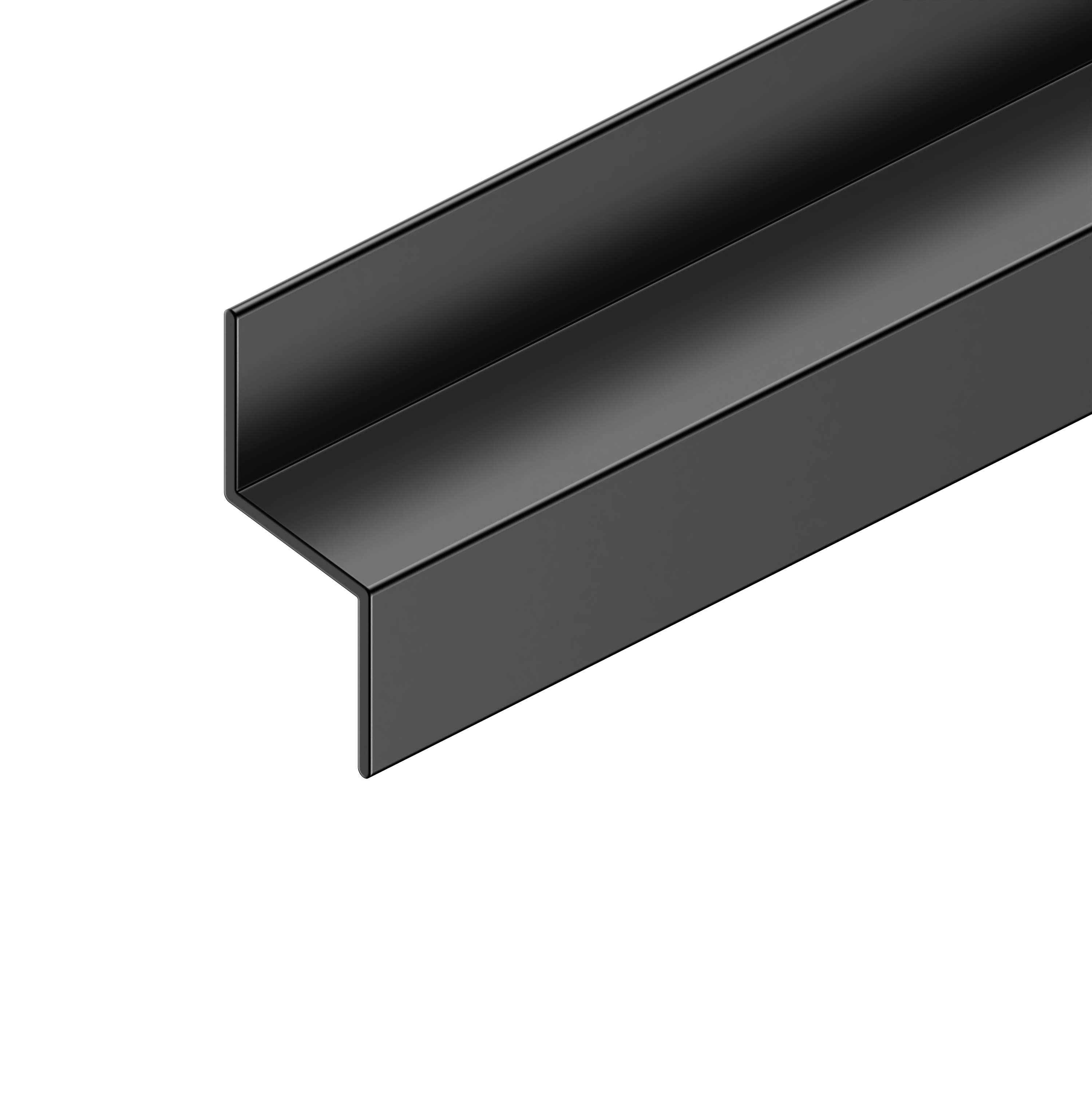

Z Profile
Available in branded colours
5.4m lengths
×
Galvanised Steel Screw
×
Stainless Steel Screw

Sustainability

100% Australian-manufactured profiles and coatings, Modinex now offers Green and SuperGreen aluminum. Green aluminum produces around 50% less CO2 emissions (8kg CO2e/kg AL), and SuperGreen produces 75% less CO2 emissions (4kg CO2e/kg AL).

Modinex is committed to Net Zero by 2050 and working actively on reducing Scope 1 and Scope 2 emissions.

Modinex’s aluminum profiles are ASI Certified with full Chain of Custody management. All aluminium profiles are 100% recyclable at the end of their life cycle.

Using responsible sources lower-carbon aluminum on your next project is the right choice for the environment.

Features and benefits

Compliance — CodeMark, cyclone, sea salt spray certified
Fire rating — AS1530.1 non-combustible
Durability — 25-year structural & 15-year fading warranty (if plain or timber grain powder coating finish is used)
Availability — Manufactured 100% in Australia with a short lead time
Easy to install — Concealed fixings for a refined design for ease of installation
Seamless design — Specially design interlocking tongue allows for secret fixing
Sustainability — Available in Green & Supergreen aluminium to reduce CO2 emission by 50-75%
Design — Available in a range of plain colour or timber grain finishes
Curved design — Curved Design – 40mm wide profile can be curved to a convex radius of 300mm
