External Timber Cladding Maintenance - A Comprehensive Guide
External timber cladding maintenance is essential for preserving the beauty and longevity of timber cladding.
Proper maintenance impacts a building’s appearance and durability while protecting it from harsh weather conditions and other damage.
This comprehensive guide delves into cladding maintenance for external timber.
It covers understanding the unique needs of timber cladding, everyday issues that may arise, and effective repair techniques.
Understanding Timber Cladding and Its Maintenance Needs
We at Modinex know timber cladding is a popular choice for external cladding due to its natural beauty, durability and sustainability.
However, to ensure it remains in top condition, it’s crucial to understand the specific maintenance requirements of different timber species and cladding styles.
Durability Classes Explained
Timber’s natural durability is classified into four classes, with Class 1 being the most durable and Class 4 the least.
- Class 1 timbers like Ironbark and Spotted Gum can last over 40 years above ground and 25 years in-ground.
- Class 2 timbers, such as Jarrah have a lifespan of 15-40 years above ground and 15-25 years in-ground.
- Class 3 timbers like Western Red Cedar and Tasmanian Oak last 7-15 years above ground and 5-15 years in-ground.
- Class 4 timbers, including most softwoods, have the lowest durability, lasting 0-7 years above ground and 0-5 years in-ground.
However, factors like local weather conditions, timber treatment, panel size and insect attack risk influence durability.

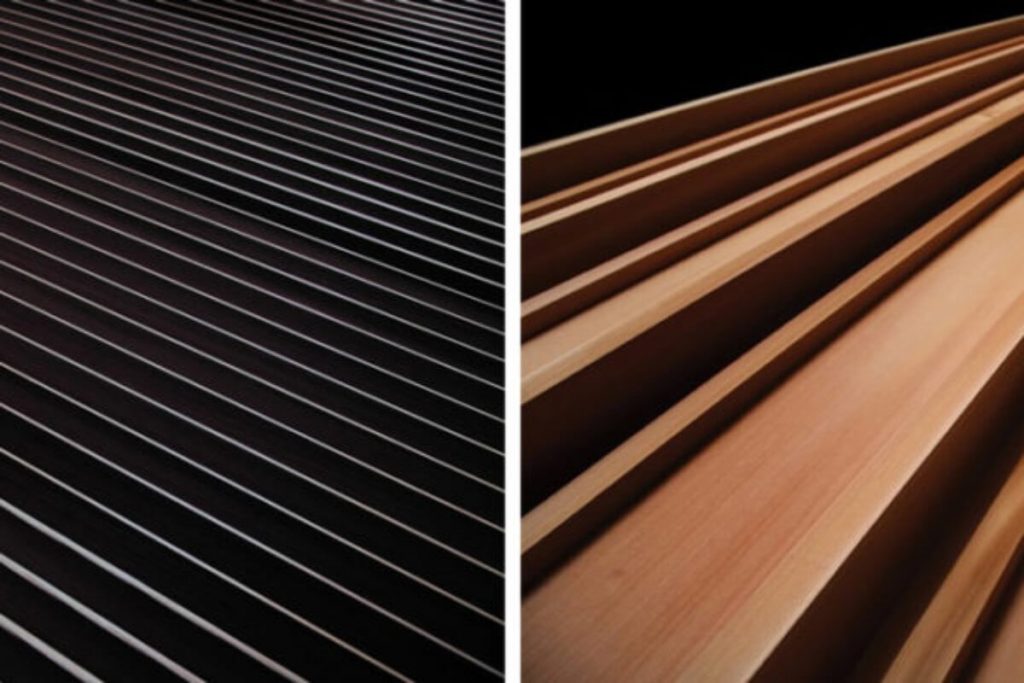

Common Australian Hard and Soft Woods Issues
Australian hardwoods are renowned for their strength and durability, which is a key reason we utilise them here at Modinex.
Some of our most popular species include Blackbutt, Ironbark, and Spotted Gum, and we recommend these timbers because they naturally resist decay, termites and harsh weather conditions.
However, they still require regular maintenance to prevent cracking, warping and discolouration.
Softwoods like Hemlock and Western Red Cedar may be more affordable but have lower natural durability.
They must be pressure-treated to appropriate hazard levels for external use. Even then, they may require more frequent maintenance than hardwoods to prevent deterioration.
Horizontal Versus Vertical Cladding Maintenance
The orientation of timber cladding affects its maintenance needs. Vertical cladding aligns with the direction of rainfall, allowing for better drainage and less water penetration.
This can reduce the risk of moisture-related issues like swelling, warping and decay.
Horizontal cladding is more susceptible to water retention, as the boards can trap moisture. This orientation may require more frequent cleaning and recoating to prevent damage.
However, with proper installation and maintenance, both horizontal and vertical cladding can perform well in external applications.
Common Timber Cladding Issues
Cladding faces a range of environmental challenges that can impact its appearance and performance over time.
UV Exposure Effects
Sunlight, particularly ultraviolet (UV) rays, has a significant impact on the colour and texture of timber cladding.
Prolonged exposure to UV light can cause the natural colour of the wood to fade, leading to a silvery-grey appearance. This process, known as weathering, occurs as the lignin in the wood breaks down and the tannins oxidise.
In some instances, this weathered look may enhance your desired aesthetic look and feel. However, many prefer to maintain the timber’s original colour.
Applying protective coatings or finishes can help slow down the weathering process and preserve the wood’s natural beauty.
Moisture and Temperature Fluctuations
Timber is a hygroscopic material, meaning it absorbs and releases moisture depending on the surrounding environment.
Changes in humidity and temperature can cause the wood to expand and contract, potentially leading to warping, cracking, or splitting.
To minimise the impact of moisture and temperature fluctuations, Modinex can assist you in choosing timber species with high dimensional stability that allows for proper acclimatisation before installation.
Additionally, discussing the adequate ventilation behind the cladding with your builder can help prevent moisture build-up and reduce the risk of damage.
Timber Warping
Warping is a common issue that can affect the appearance and functionality of external timber cladding. It occurs when the moisture content in the wood changes unevenly, causing the boards to twist, cup, or bow.
To prevent this issue, it is important to choose the right timber species for your project, ensure proper installation techniques, and apply protective coatings or finishes to stabilise the wood.
Coastal Environments
Buildings located near the Australian coastline face additional challenges due to the harsh coastal environment.
Salt spray, high humidity, and increased UV exposure can accelerate the weathering process and impact the durability of timber cladding.
To withstand these conditions, it’s important to select timber species with natural durability or opt for modified wood products that have been treated to enhance their resistance to decay and insect attack.
Regular inspections, timely repairs, and protective treatments can go a long way in extending the lifespan of your coastal cladding.
Repairs and Replacements
Despite the durability of timber cladding, occasional repairs and replacements may be necessary to maintain its structural integrity and aesthetic appeal.
Identifying and addressing issues promptly can prevent further damage and extend the lifespan of your cladding.
Fixing Cracks and Splits
Cracks and splits in timber cladding can occur due to changes in moisture levels or exposure to extreme weather conditions.
To repair these issues, start by removing any rotted timber and ensuring the affected area is clean and dry. For small cracks, apply a quality exterior wood filler using a flexible filling blade, allowing it to dry completely before sanding smooth.
For deeper cracks, apply the filler in layers, allowing each layer to dry before applying the next. Once the filler has dried, sand the surface to create an even finish and apply a coat of exterior paint or stain to protect the repaired area.
Always be sure to read the instructions of your chosen filling product before commencing.
Replacing Damaged Boards
In some cases, individual cladding boards may be too damaged to repair and must be replaced.
To do this, locate the damaged board and the nearest studs on either side. Using a multi-tool or a saw, carefully cut the damaged board along the centre of the studs, ensuring not to damage the surrounding boards.
Remove the damaged board using a hammer, chisel, and pry bar, taking care to avoid any electrical cables or pipes that may be present behind the cladding.
Measure and cut the replacement board to size, ensuring a snug fit. Before installing the new board, apply a sealant to the cut ends and edges to prevent moisture penetration and future rot.
Secure the replacement board in place using galvanised nails, pre-drilling the holes to avoid splitting the timber.
Finally, paint or stain the new board to match the existing cladding, blending it seamlessly with the surrounding boards.
Pest and Insect Prevention
Pests and insects can cause significant damage to timber cladding if left unchecked. To prevent infestations, it’s essential to maintain a clean and dry environment around your cladding.
Regularly inspect the cladding for signs of pest activity, such as small holes, wood dust, or visible insects.
If you suspect an infestation, take immediate action to address the issue. For minor problems, you may be able to treat the affected area with a targeted insecticide or pesticide.
However, for more severe infestations, it’s best to consult a professional pest control service to ensure the problem is effectively resolved.
To prevent future pest issues, consider installing a physical barrier behind the cladding to deter rodents and insects. Stainless steel wire wool or mesh can be an effective solution, filling the cavity behind the cladding and preventing pests from gaining access.
By taking proactive steps to prevent and address pest issues, you can help ensure the longevity and beauty of your external timber cladding.
Protective Treatments and Coatings
Protecting your external timber cladding is essential to maintain its beauty and extend its lifespan. There are various types of protective finishes available, each offering different levels of protection and aesthetic appeal.
Choosing the right treatment depends on factors such as the timber species, desired look, and exposure to the elements.
Types of Protective Finishes
Timber cladding can be treated with a range of finishes, including oils, stains, and coatings. Penetrating oils and stains are designed to soak into the wood, providing a natural look while protecting against moisture and UV damage.
These finishes typically erode gradually over time and require regular reapplication.
Film-forming coatings, such as paints and varnishes, create a durable surface layer that offers longer-lasting protection but may crack or flake if not properly maintained.
Innovative surface modification coatings, like Sioo:x, utilise silicate-based technology to mineralise the wood surface, creating a long-lasting, silver-grey protective shell.
These treatments can extend the maintenance cycle of cladding and decking timbers by two to three times compared to traditional semi-transparent coatings.
Application Techniques
The success of any protective treatment relies on proper application techniques. Before applying a finish, ensure the timber is clean, dry, and free from contaminants.
Use a brush, sprayer, or roller to apply the product evenly, following the manufacturer’s instructions for the best results. When using a brush, work in the direction of the grain and avoid excessive brushing, which can lead to an uneven finish.
For optimal protection, consider applying the treatment before installing the cladding. This allows for complete coverage of each board, including end grains and hidden surfaces, which can be difficult to reach after installation.
Factory-applied treatments offer the advantage of professional application using advanced equipment and techniques, ensuring a consistent and durable finish.
Cleaning Methods
Regular cleaning is crucial to maintain the appearance and performance of your external timber cladding. Dirt, stains, and mould can be removed using a specialist timber cleaning product designed to tackle stubborn contaminants without damaging the wood.
Pressure washing is another effective method for removing grime and dirt, but it’s essential to hire a professional to avoid causing damage to the timber or its coating.
Before recoating or repainting, thoroughly clean the cladding to ensure proper adhesion of the new finish. Use a powerful cleaner and degreaser, like QuickClean, to prepare the surface for a fresh coat of protection.
Recoating Schedules
The frequency of recoating depends on various factors, including the type of finish, exposure to weather, and the timber species.
Penetrating oils and stains typically require reapplication every 2-4 years, while film-forming coatings may last longer, depending on the quality and application.
Regularly inspect your cladding for signs of wear, fading, or damage, and follow the manufacturer’s guidelines for recoating intervals.
Establishing a maintenance cycle using a calendar can help you stay on top of inspections and recoating schedules.
By following a regular maintenance plan and using high-quality protective treatments, you can ensure your external timber cladding remains beautiful and durable for years to come.
